2 Point Seatbelts
Parameter: Value
Webbing material: Polyester (automotive grade)
Width: 46mm ±1mm
Thickness: 1.2mm
Static break strength: ≥28.3kN
Product Introduction
A Classic Belt for Many Vehicles

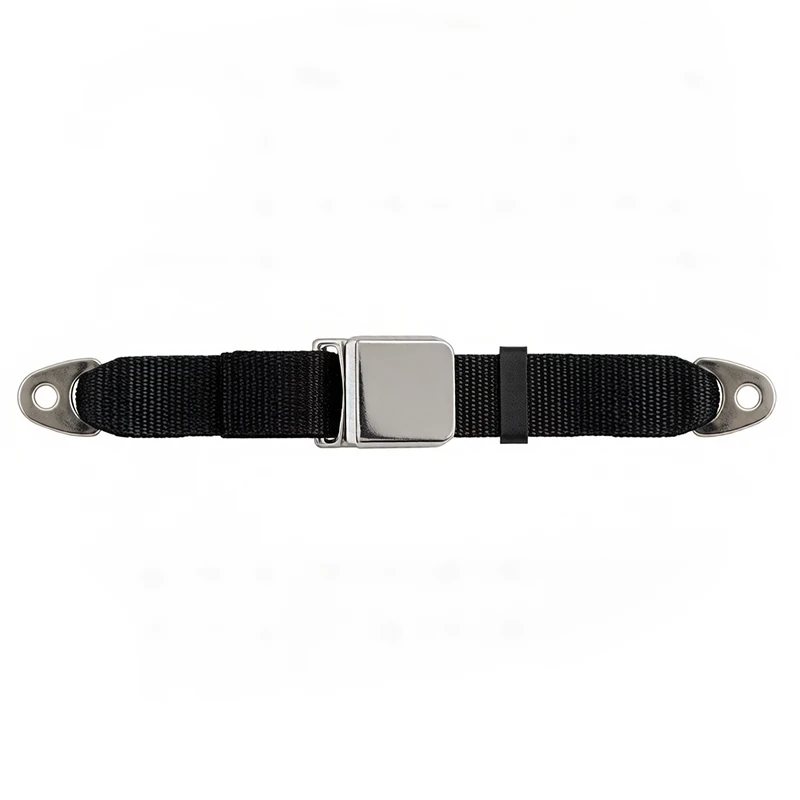

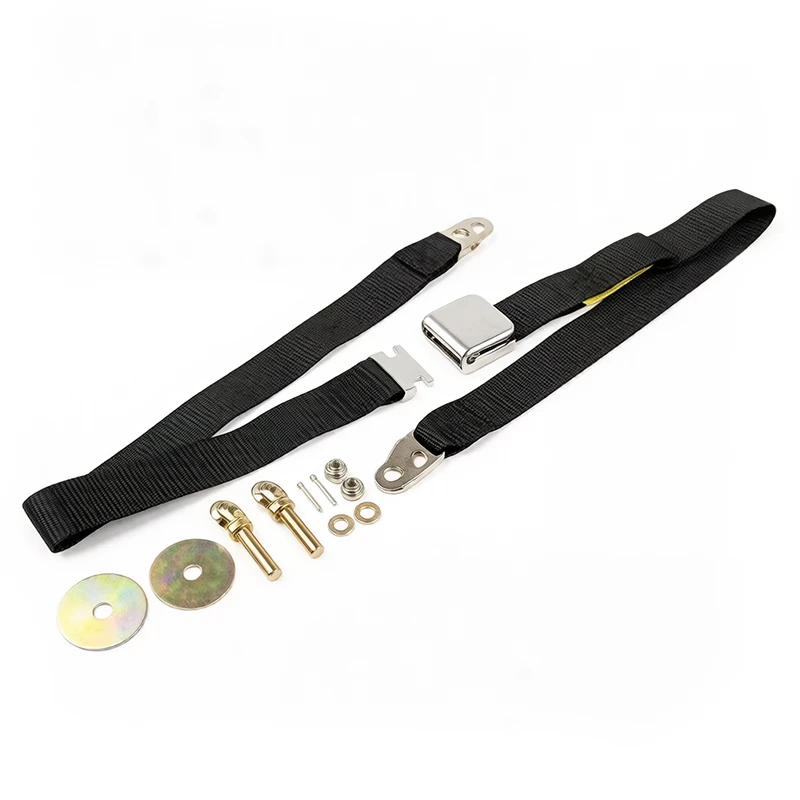

Two-point seatbelts are a basic lap-belt design. They are simple, strong, and very reliable. Many car makers use 2 point seatbelts for rear middle seats, construction machines, farm vehicles, and buses. Our factory ships more 2 point seatbelts than any other product. These 2 point seatbelts work well and last for years.
High Strength Webbing and Smart Lock
The webbing is made from polyester for cars. It is 46mm ±1mm wide and 1.2mm thick. Its static break strength is ≥28.3kN. That is much higher than the national rule. The buckle holds strong under angle pulls. Locking force is ≥15kN. It will not open by mistake. The opening force is set between 40N and 120N. It is easy to use for all people.
Fire Safe and Rust Proof
These two-point seatbelts pass the GB 8410-2006 A-0 fire test. The oxygen index is 25%. Metal parts pass a 48-hour salt spray test. They do not rust easily. The retractor works smoothly and has passed 5,000 durability tests. Our automatic production line makes high quality two-point seatbelts every day. We supply SAIC-GM Wuling and Changan Auto. The product has 3C certification and meets GB 14166-2024.
Data Table – Two-Point Seatbelts
|
Parameter |
Value |
|
Webbing material |
Polyester (automotive grade) |
|
Width |
46mm ±1mm |
|
Thickness |
1.2mm |
|
Static break strength |
≥28.3kN |
|
Buckle holding force |
≥15kN |
|
Buckle opening force |
40N – 120N |
|
Flame retardant class |
GB 8410-2006 A-0 |
|
Oxygen index |
25% |
|
Salt spray test |
48 hours |
|
Retractor durability |
≥5,000 cycles |
